Description
bolt gears GM 8.5" 10 Bolt ChevyGM 8. 5" 10 Bolt Gear Package Description Package Includes: (1) Ring and Pinion Gear Set (1) Master Bearing Install Kit Rigid Axle's OE Dry 2 Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2 Cut ring and pinions are made using a two cut, face hobbed manufacturing process. The advantage to running a 2 Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2 Cut gear

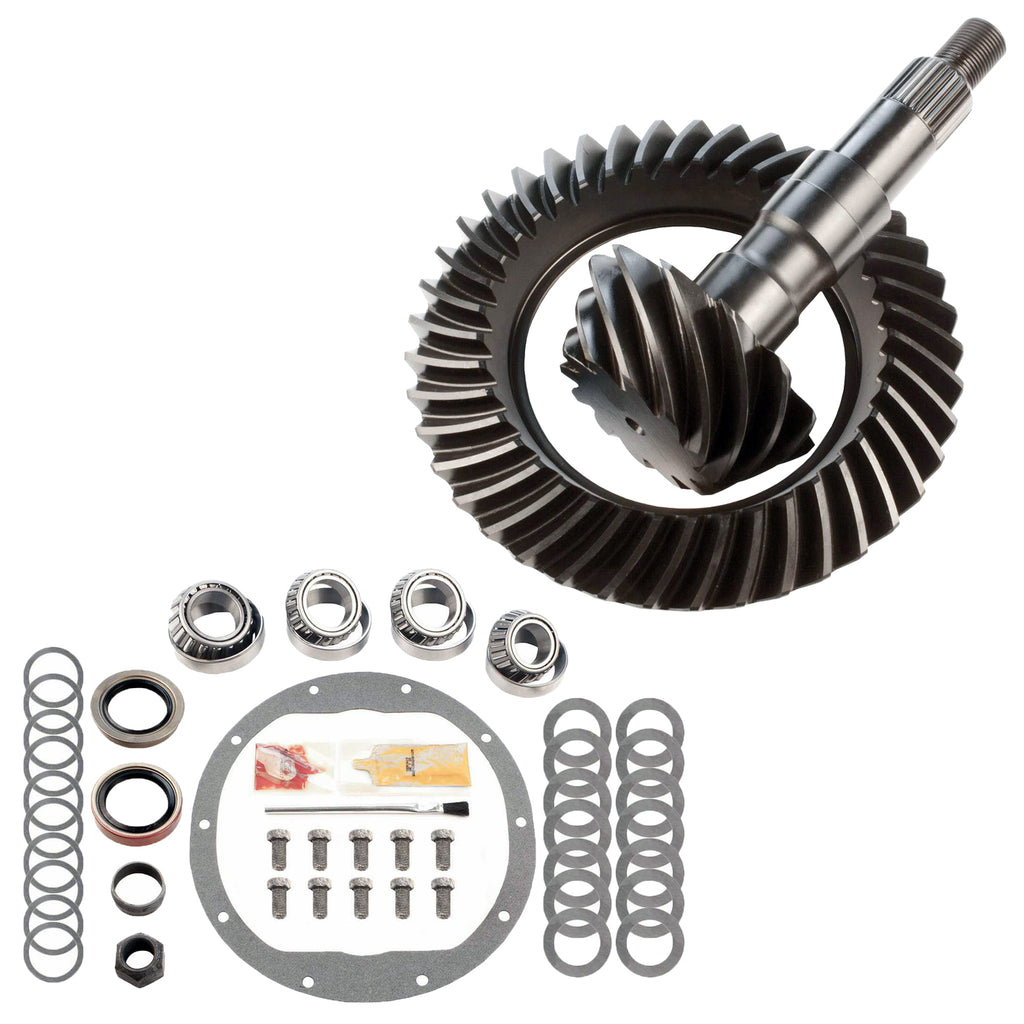

GM 8.5" 10 Bolt Gear Package
Description
Package Includes:
(1) Ring and Pinion Gear Set
(1) Master Bearing Install Kit
- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
- High Quality Koyo Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve and Preload Shims
- Loctite
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Buick Apollo (1973 - 1975)
- Buick Electra (1971 - 1989)
- Buick Regal (1973 - 1987)
- Buick Riviera (1975 - 1978)
- Buick Skylark (1970 - 1979)
- Cadillac Escalade (1999 - 2000)
- Chevrolet / Chevy Bel Air (1970 - 1975)
- Chevrolet / Chevy Blazer (1979 - 1994)
- Chevrolet / Chevy C10 1/2 Ton (2WD) (1979 - 1987)
- Chevrolet / Chevy C1500 1/2 Ton (2WD) (1988 - 1999)
- Chevrolet / Chevy C2500 3/4 Ton (2WD) (1989 - 2000)
- Chevrolet / Chevy Camaro (1970 - 1981)
- Chevrolet / Chevy Caprice (1970 - 1996)
- Chevrolet / Chevy Chevelle/ Malibu (1973 - 1973)
- Chevrolet / Chevy El Camino (1971 - 1976)
- Chevrolet / Chevy Express Van 1500 1/2 Ton (1996 - 2003)
- Chevrolet / Chevy G10 1/2 Ton (1979 - 1995)
- Chevrolet / Chevy G20 3/4 Ton (1975 - 1995)
- Chevrolet / Chevy Impala (1971 - 1996)
- Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1979 - 1999)
- Chevrolet / Chevy K5 Blazer (4WD) (1979 - 1991)
- Chevrolet / Chevy Malibu (1973 - 1983)
- Chevrolet / Chevy Monte Carlo (1973 - 1978)
- Chevrolet / Chevy Nova (1970 - 1979)
- Chevrolet / Chevy S10 Blazer / Pickup (1994 - 2000)
- Chevrolet / Chevy Suburban 1/2 Ton (1979 - 2000)
- Chevrolet / Chevy Tahoe 1500 1/2 Ton (1995 - 1998)
- GMC C15/ C1500 1/2 Ton (2WD) (1979 - 1999)
- GMC C25/ C2500 3/4 Ton (2WD) (1997 - 2000)
- GMC G15/ G1500 1/2 Ton (1979 - 1995)
- GMC G25/ G2500 3/4 Ton (1978 - 1995)
- GMC K15/ K1500 1/2 Ton (4WD) (1979 - 1999)
- GMC S15 Jimmy / Pickup (1994 - 2000)
- GMC Savana 1500 1/2 Ton (1996 - 2003)
- GMC Savana 2500 3/4 Ton (1996 - 1998)
- GMC Sonoma (1994 - 1998)
- GMC Suburban 1/2 Ton (1979 - 2000)
- GMC Typhoon (1992 - 1993)
- GMC Yukon 1500 1/2 Ton (1992 - 2000)
- Oldsmobile Cutlass (1970 - 1987)
- Oldsmobile Omega (1973 - 1979)
- Plymouth Phoenix (1978 - 1979)
- Pontiac Bonneville (1970 - 1986)
- Pontiac Catalina (1970 - 1981)
- Pontiac Firebird (1970 - 1981)
- Pontiac Grand Prix (1971 - 1987)
- Pontiac GTO (1970 - 1977)
- Pontiac LeMans (1971 - 1983)
- Pontiac Trans Am (1970 - 1981)
- Pontiac Ventura (1976 - 1977)
Specifics
- Cover Bolt Quantity: 10
- Differential Model: GM 8.5"
- Pinion Shaft Diameter: 1.626 Inch
- Pinion Spline Count: 30
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 8.5 Inch
- Ring Gear Material: Heat Treated 8620 Steel
- Ring Gear Rotation: Standard
